Time ADHX 45 Frameset
Time ADHX 45 (Gravel Adventure Bike)
Riders that spend the majority of their time on unimproved roads will appreciate the volume and traction offered by a 45c tire. Gravel-oriented frames achieve the necessary tire clearance by thinning and lengthening the seatstays and chainstays and widening the crown of the fork. The resulting increase in frame deflection paired with the vibration absorption and traction of larger tires make light work of rough roads even as they render the ADHX 45 less suited to asphalt.
VOLUME, TRACTION & CONTROL
A 45c tire has roughly three times the volume of a 28c tire and about 65% more than a 38c version. More volume allows lower air pressures and better traction, increased comfort and more stability. Additionally, the more aggressive tread patterns available in larger sizes further contribute to grip on uncertain terrain.
TOP TUBE MOUNT POINT
Frame storage is great, but fingertip access while riding is better. Your ADHX is compatible with bags or mounting systems that use a standard bottle mount.
REINFORCED STEERER
Fork steerer tubes must withstand a great deal of stress from riding and clamping forces imparted by the stem. TIME have always reinforced steerers with Kevlar or Vectran fibers to dramatically reduce the risk of total failure and separation in this critical area.
Available in 5 Sizes and 4 colours: XS,S,M,L,XL

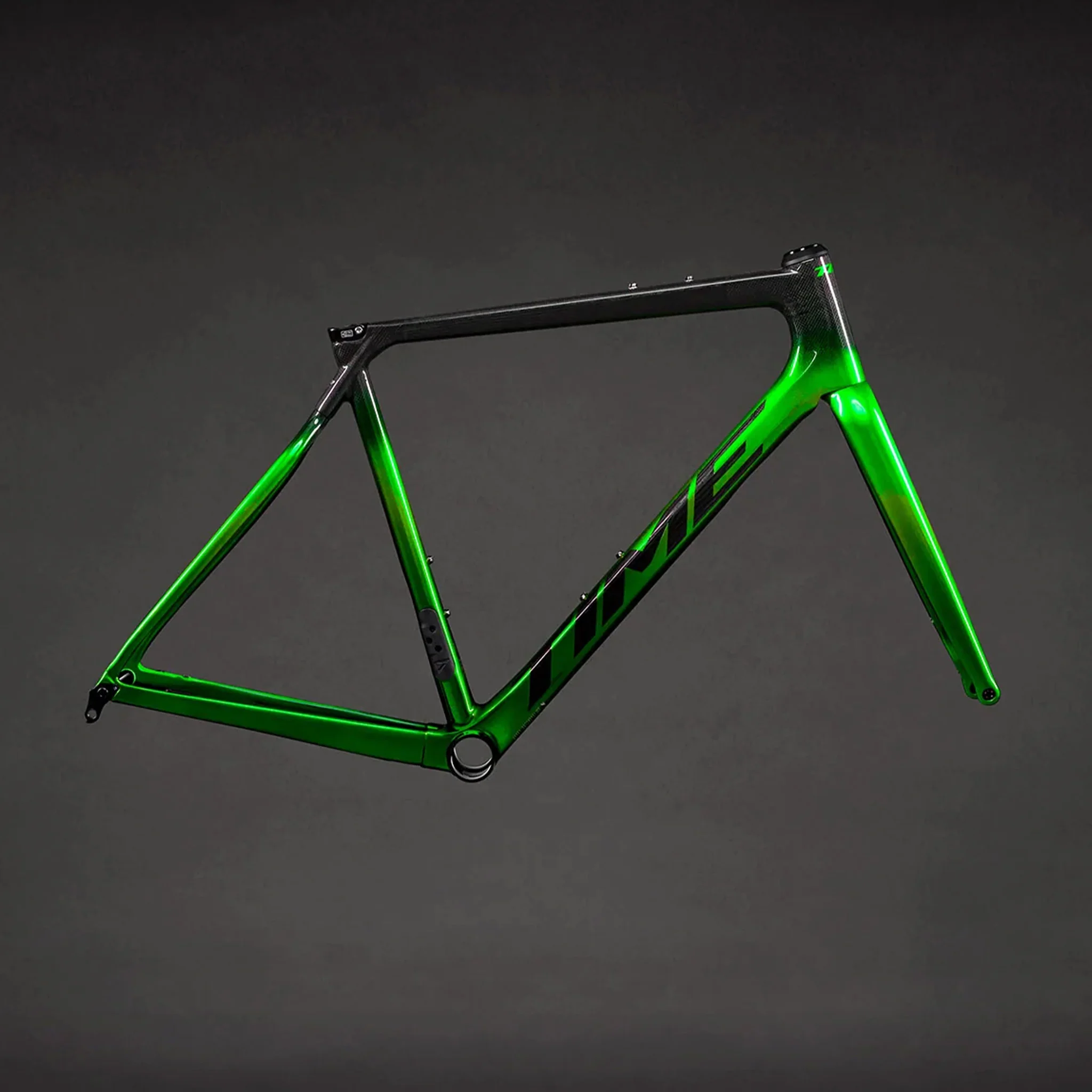

- V33 Vertical Green

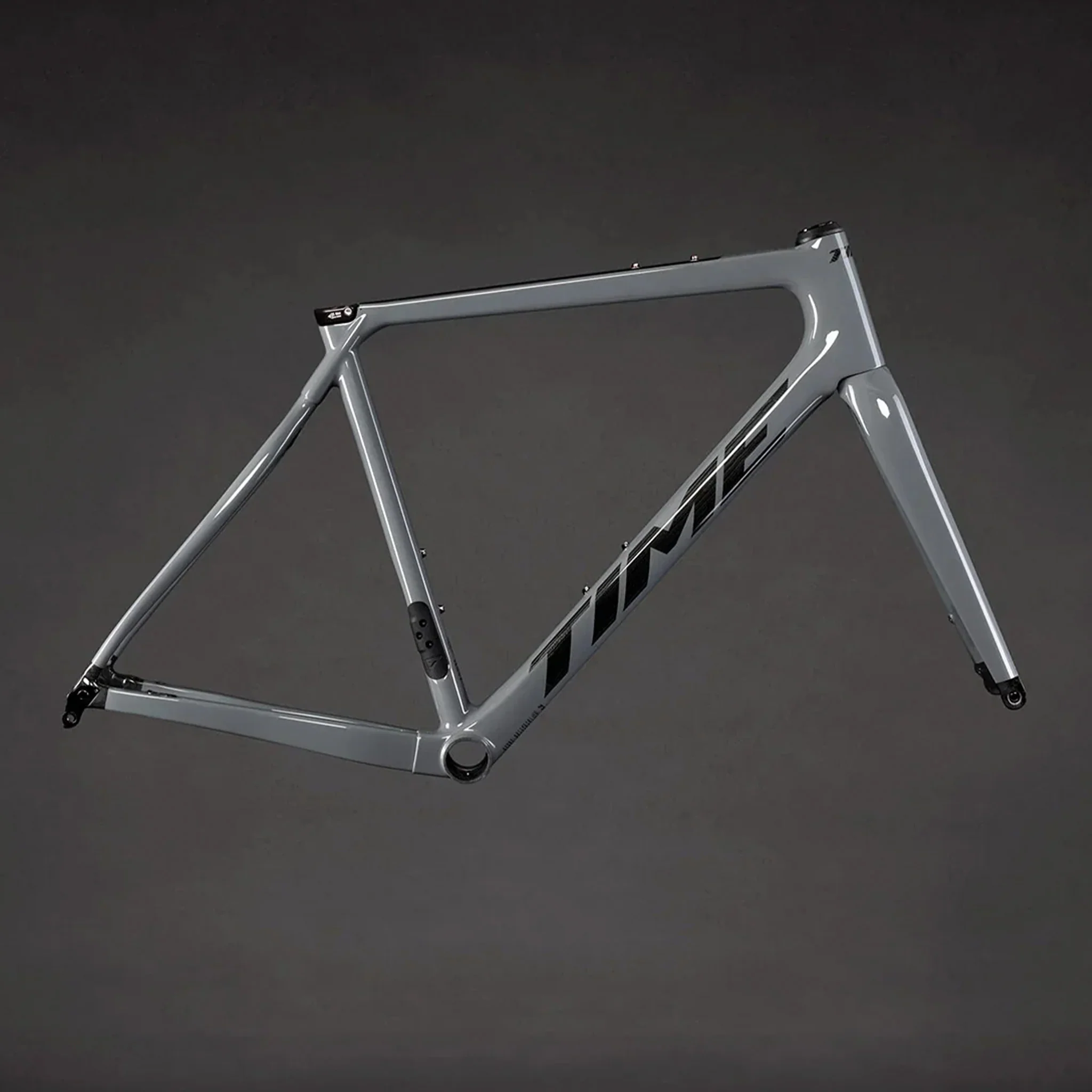

- V29 Dune

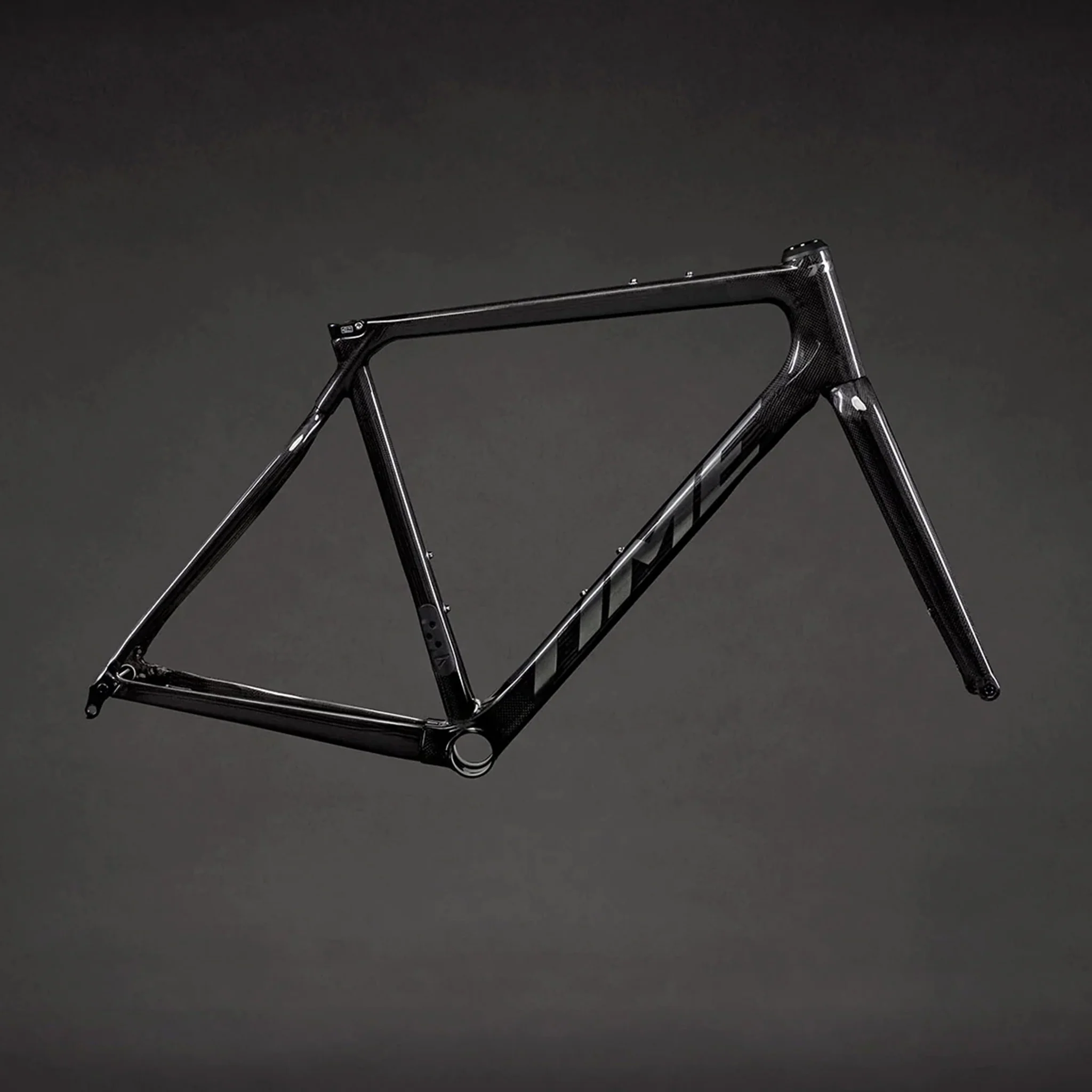

- V28 Black Olive

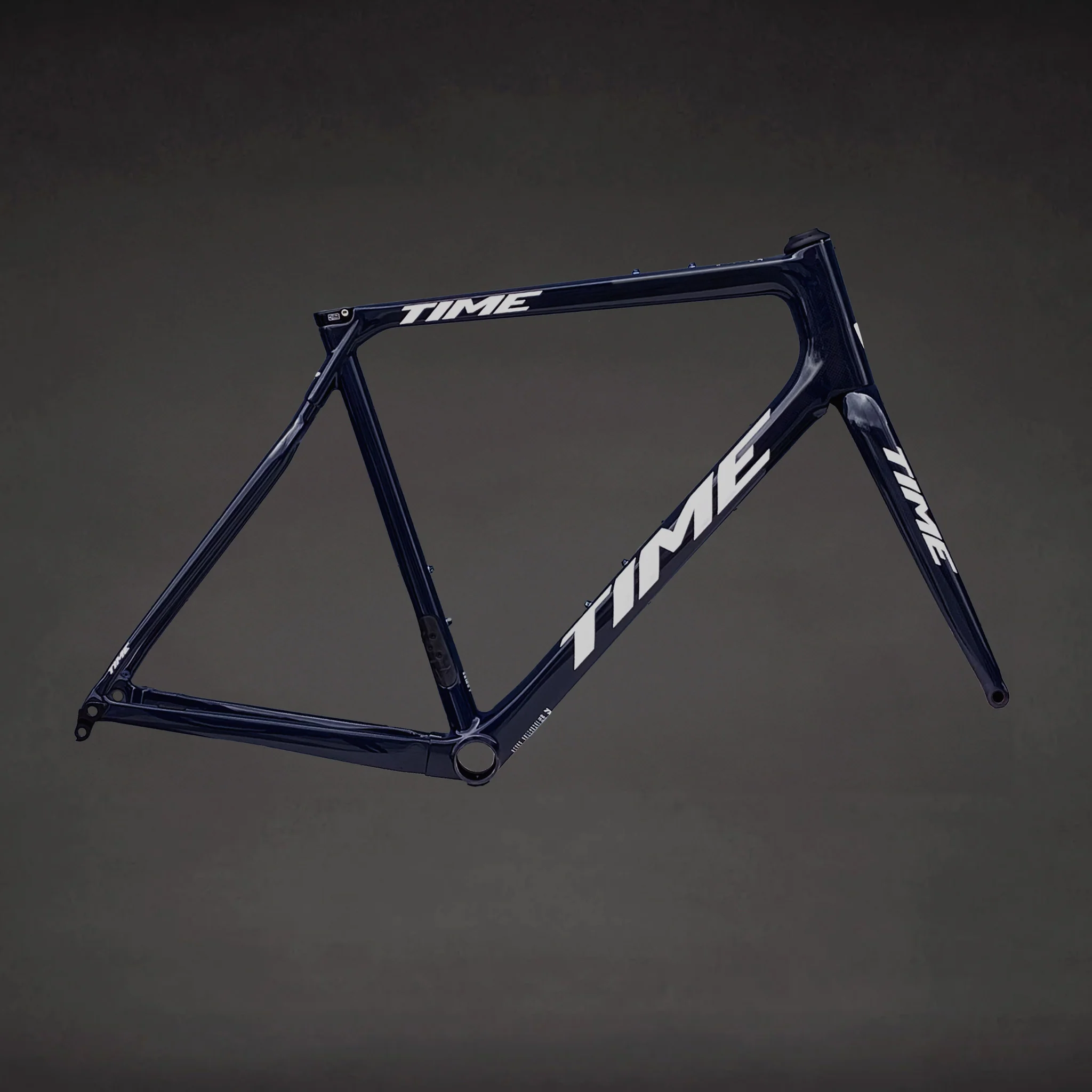

- V16 Cobalt
-
Specifications
- Frame Material: BCS Carbon Fiber - Dyneema® Enhanced
- Thru Axles: 12x120x1.5mm Pitch F, 12x159x1.5 Pitch R
- Sizes: XS, SM, MD, LG, XL
- Seatpost Diameter: ø27.2mm
- Fork Steerer Tube: Tapered 1-1/8" to 1-1/2"
- Seatpost Clamp: Proprietary ADHX Alloy
- Headset Bearings: Top and Bottom 1-1/2" (with internal routing compression ring)
- Shifting: Compatible with Electronic and Standard Shifting Systems
- Wheel Size: 700c/650b
- Front Derailleur: 1X and 2X Wide Compatible with Integrated Single Cover and Drivetrain Conversion Kit
-
Maximum Tire Width:
- 700x32-45c Gravel Tire
- 650x50c Gravel Tire
- (Not all tire/rim combinations fit with adequate clearance - check for appropriate fit)
- Rear Derailleur: Standard Mount
- Bottom Bracket: PF BB386
- Brake Type: Front and Rear Flat Mount Disc
- Disc Hub Standard: 12x100mm F, 12x142mm R
- Rotor Size: 140/160mm with Adapter
-

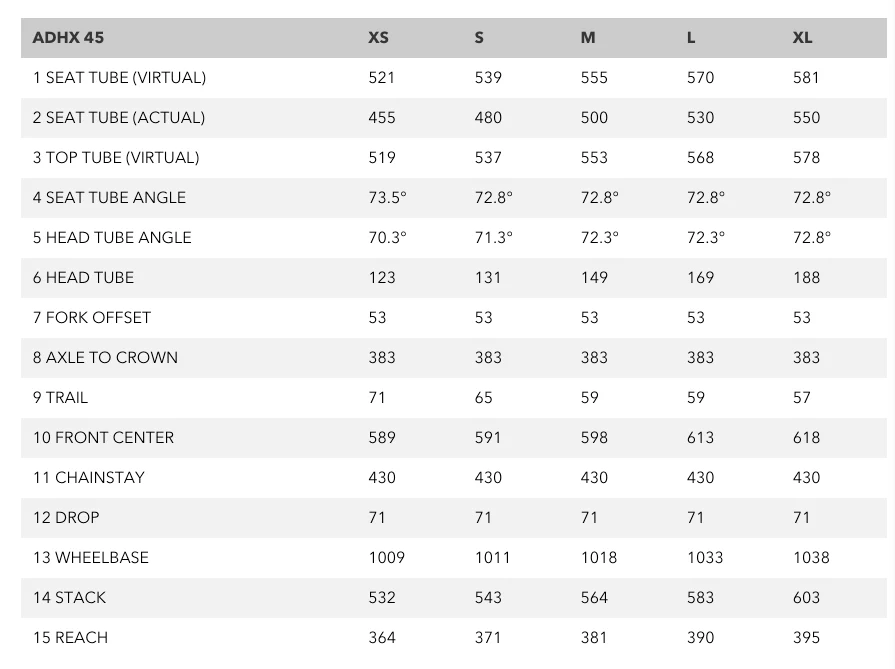

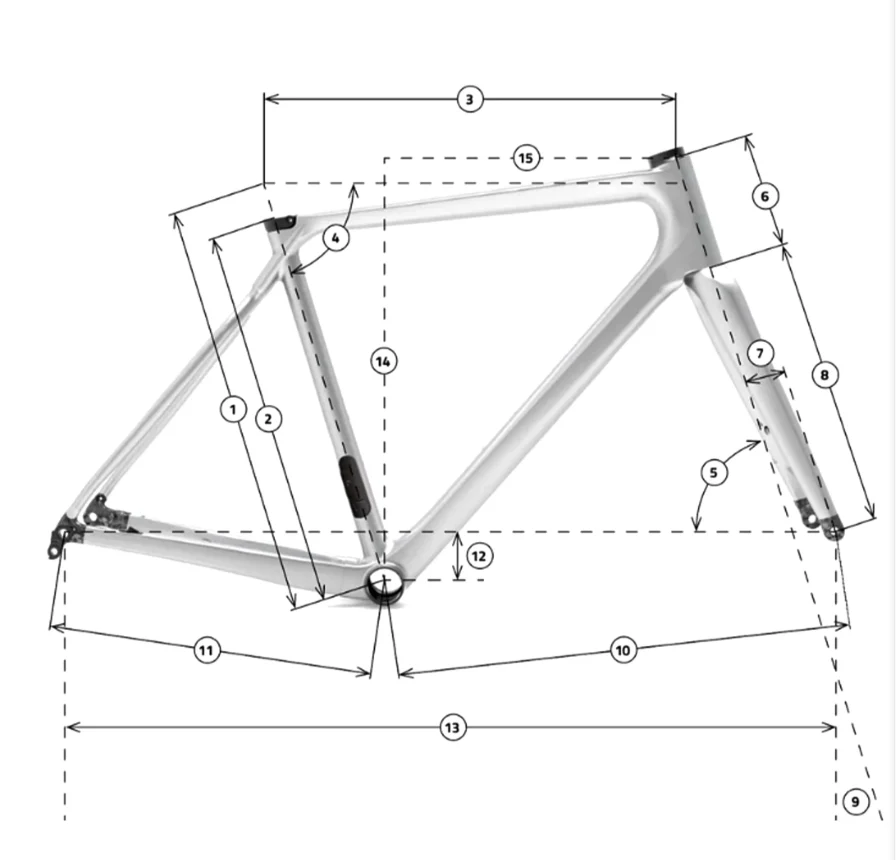

Geometry
ADHX 45 XS S M L XL 1 SEAT TUBE (VIRTUAL) 521 539 555 570 581 2 SEAT TUBE (ACTUAL) 455 480 500 530 550 3 TOP TUBE (VIRTUAL) 519 537 553 568 578 4 SEAT TUBE ANGLE 73.5° 72.8° 72.8° 72.8° 72.8° 5 HEAD TUBE ANGLE 70.3° 71.3° 72.3° 72.3° 72.8° 6 HEAD TUBE 123 131 149 169 188 7 FORK OFFSET 53 53 53 53 53 8 AXLE TO CROWN 383 383 383 383 383 9 TRAIL 71 65 59 59 57 10 FRONT CENTER 589 591 598 613 618 11 CHAINSTAY 430 430 430 430 430 12 DROP 71 71 71 71 71 13 WHEELBASE 1009 1011 1018 1033 1038 14 STACK 532 543 564 583 603 15 REACH 364 371 381 390 395 -
