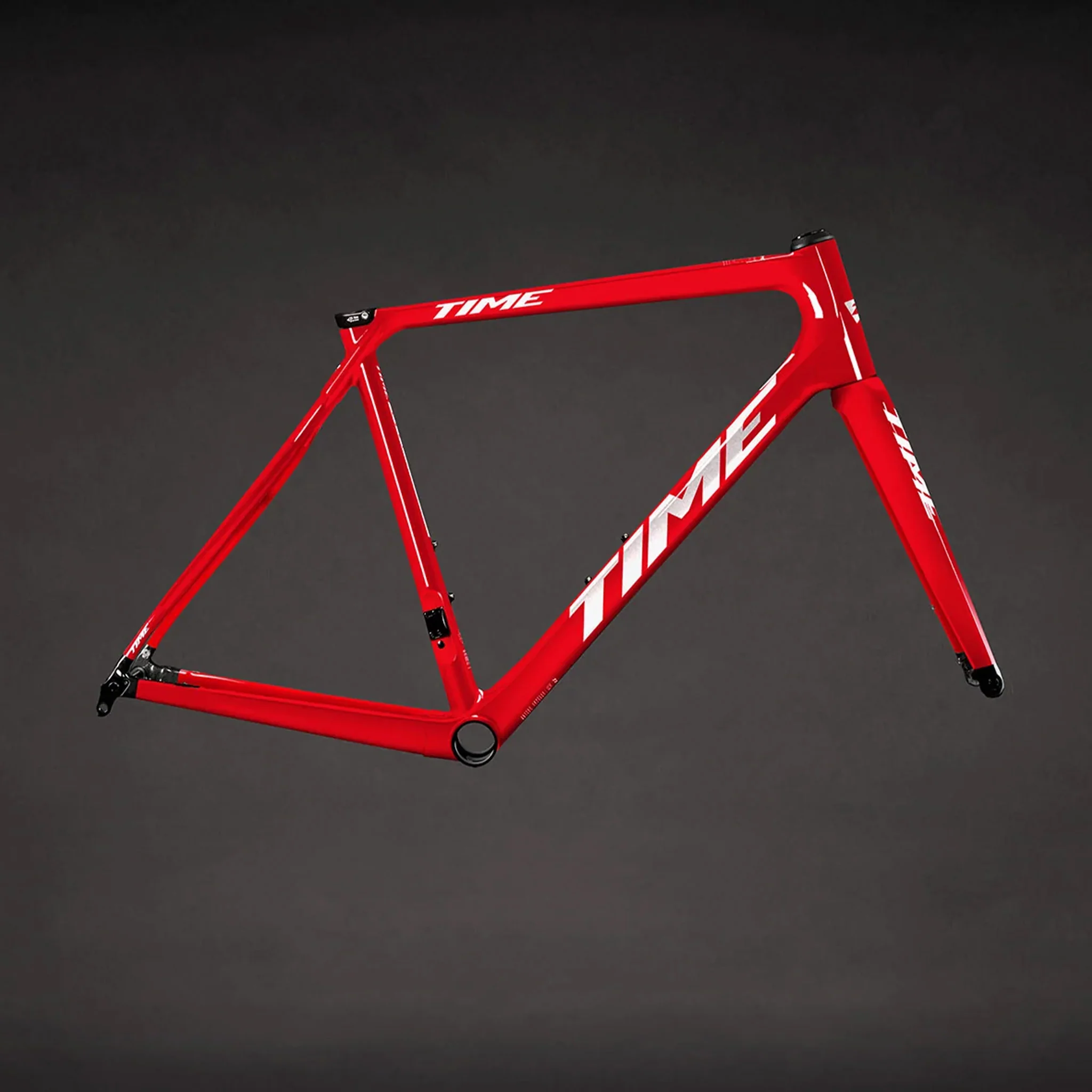

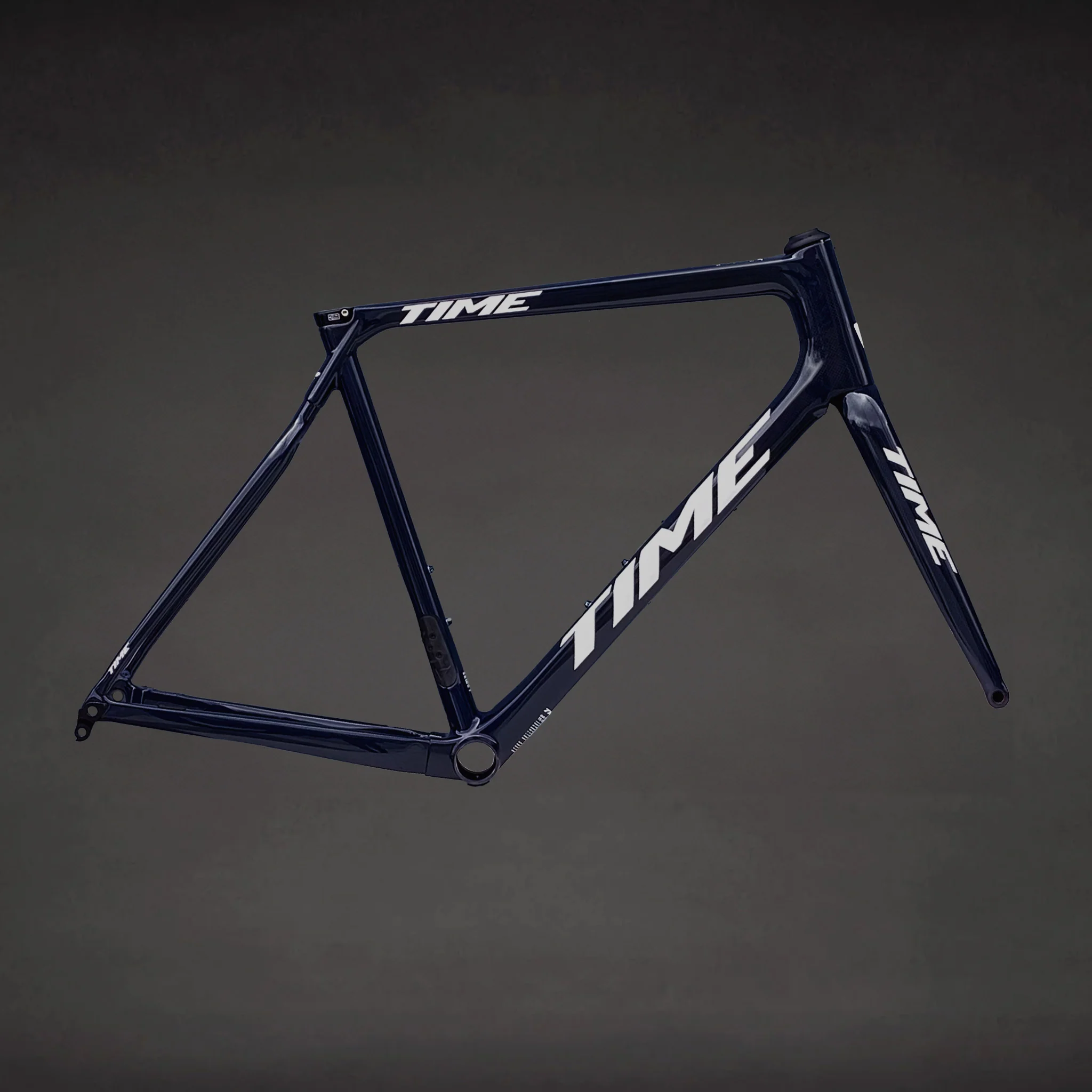

Time Alpe D'Huez Disc Frameset

Time ADH (Alpe d'Huez Disc)

The newest edition of the famous Alpe D'Huez - Time's lightweight climbing frame is now updated with all of their newest tech. Two things shine here on the Alpe D'Huez, or what they call the ADH Disc - all integrated cable routing, and the addition of the super strong bio based fibre first seen on the ADHX, Dyneema.

Alpe D'Huez, The Ultimate Road Bike. We are known for the perfect balance of low weight, high efficiency, and responsive handling road bikes. The TIME Alpe d'Huez is the ultimate road bike that has stiffness and comfort rolled into one.

What is Dyneema?

Dyneema is a natural fibre that is 15x stronger than steel, while still being light enough to float on water. Since Time weaves their own carbon, they are able to add a layer of Dyneema into their carbon makeup without compromising in weight. This makes for a super strong frame where it matters most, specifically at the intersections of the downtube, toptube, and headtube. Dyneema, in addition to Time's BCS and RTM carbon laying process, makes for the best made bicycle frames in the world. If you want a frame that is perfect every time, it's time you choose Time.

Special orders; Please inquire with us if you are interested in building the Time ADH Disc with any groupset and wheelset.

• Specifications
• Geometry
• Video

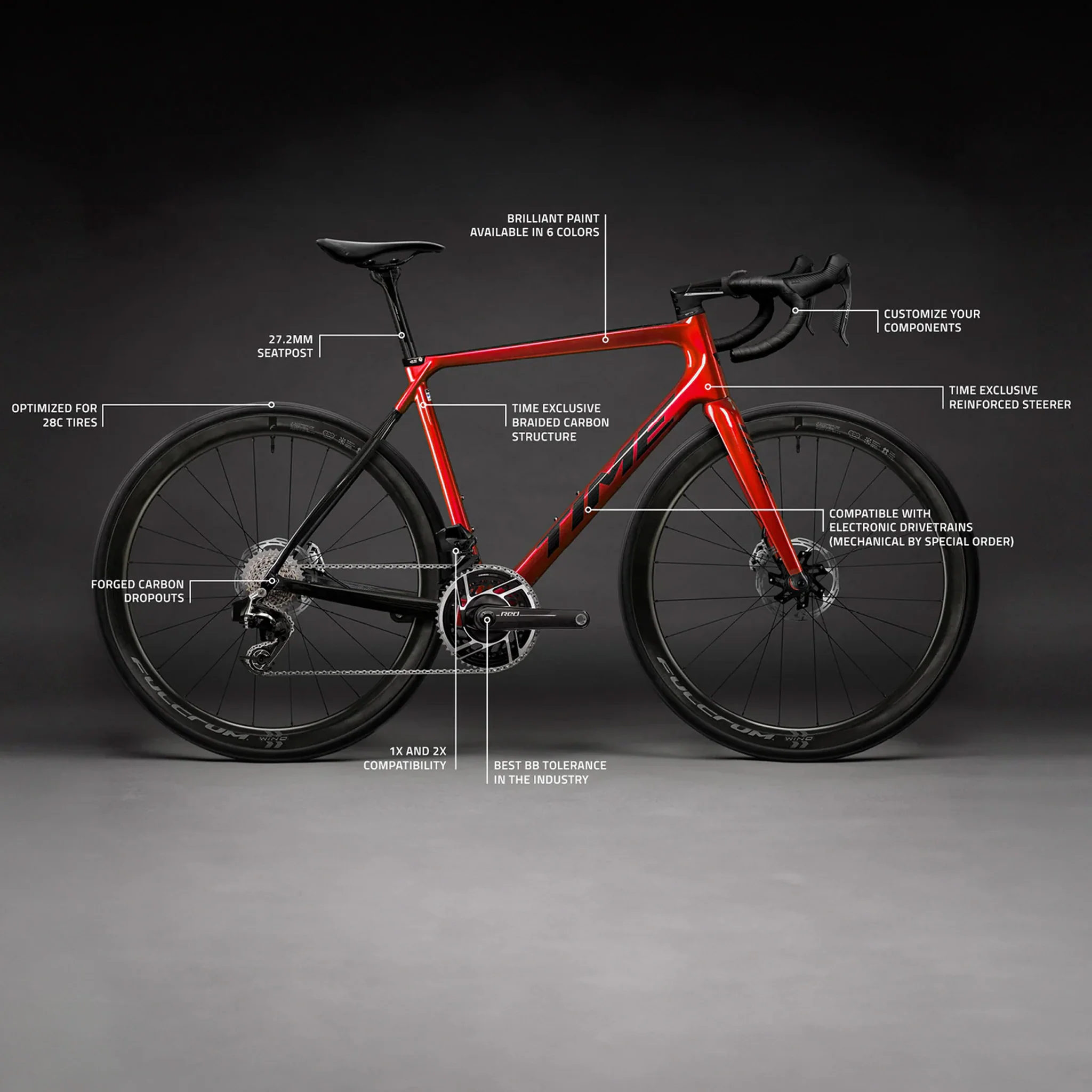

• Specifications

  • Frame Material: BCS Carbon Fiber, Vectran™ and Dyneema®
  • Thru Axles: 12x120x1.5mm Pitch (Front), 12x159x1.5 (Rear)
  • Sizes: XS, SM, MD, LG, XL
  • Seatpost Diameter: ø 27.2mm
  • Fork Steerer Tube: Tapered 1-1/8" to 1-1/2" Vectran™ Enhanced
  • Seatpost Clamp: Proprietary ADH Alloy
  • Headset Bearings: Top and Bottom 1-1/2" (with internal routing compression ring)
  • Shifting: Compatible with Electronic Shifting Systems; Mechanical-compatible frames available by special order
  • Wheel Size: 700c, ETRTO 28-622
  • Front Derailleur: 1X and 2X Compatible
  • Maximum Tire Width: 28c
  • Rear Derailleur: Standard Mount
  • Bottom Bracket: PF BB386 EVO
  • Brake Type: Front and Rear Flat Mount Disc
  • Disc Hub Standard: 12x100mm (Front), 12x142mm (Rear)
  • Rotor Size: Max 160mm with DM Adapter

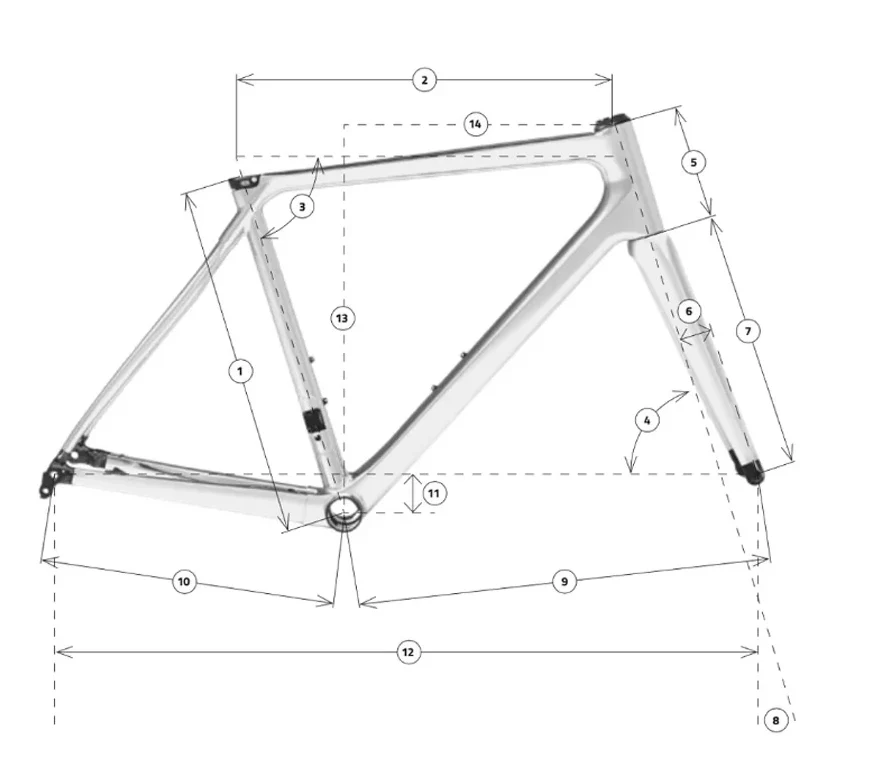

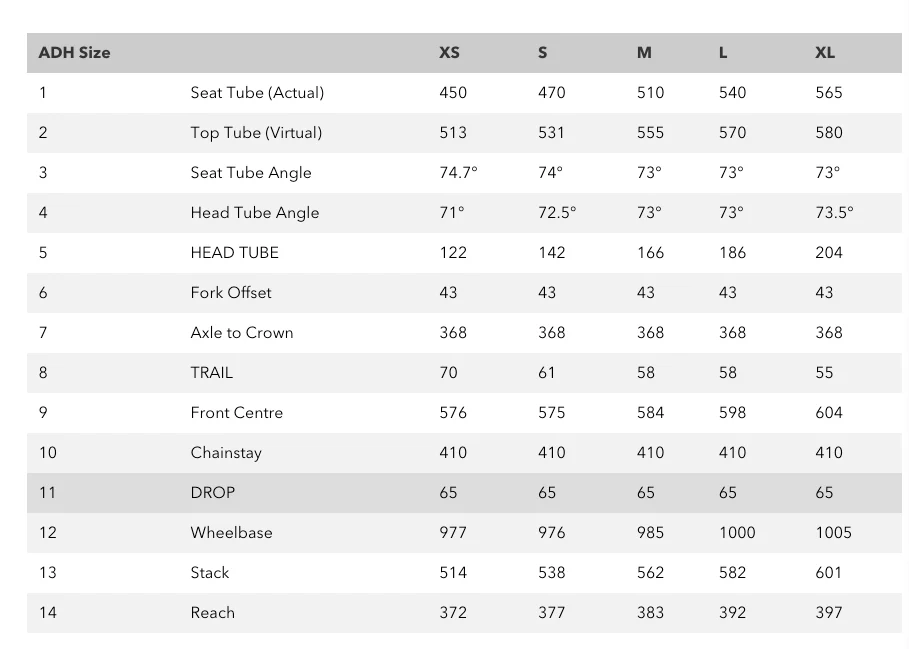

• Geometry



  ADH Size		XS	S	M	L	XL
  1	Seat Tube (Actual)	450	470	510	540	565
  2	Top Tube (Virtual)	513	531	555	570	580
  3	Seat Tube Angle	74.7°	74°	73°	73°	73°
  4	Head Tube Angle	71°	72.5°	73°	73°	73.5°
  5	HEAD TUBE	122	142	166	186	204
  6	Fork Offset	43	43	43	43	43
  7	Axle to Crown	368	368	368	368	368
  8	TRAIL	70	61	58	58	55
  9	Front Centre	576	575	584	598	604
  10	Chainstay	410	410	410	410	410
  11	DROP	65	65	65	65	65
  12	Wheelbase	977	976	985	1000	1005
  13	Stack	514	538	562	582	601
  14	Reach	372	377	383	392	397
